Name: Factory wholesale OEM 1 inch Aerosol valve and actuator
Availability: InStock

Factory wholesale OEM 1 inch Aerosol valve and actuator

Multipurpose aerosol valve for spray, suitable for 1 inch opening aerosol cans

Item No :
1 inch Aerosol valve and actuator
Order(MOQ) :
30000
Product Origin :
China
Shipping Port :
GuangZhou/Shengzhen
Lead Time :
15-20days

Inquire Now

Product Details

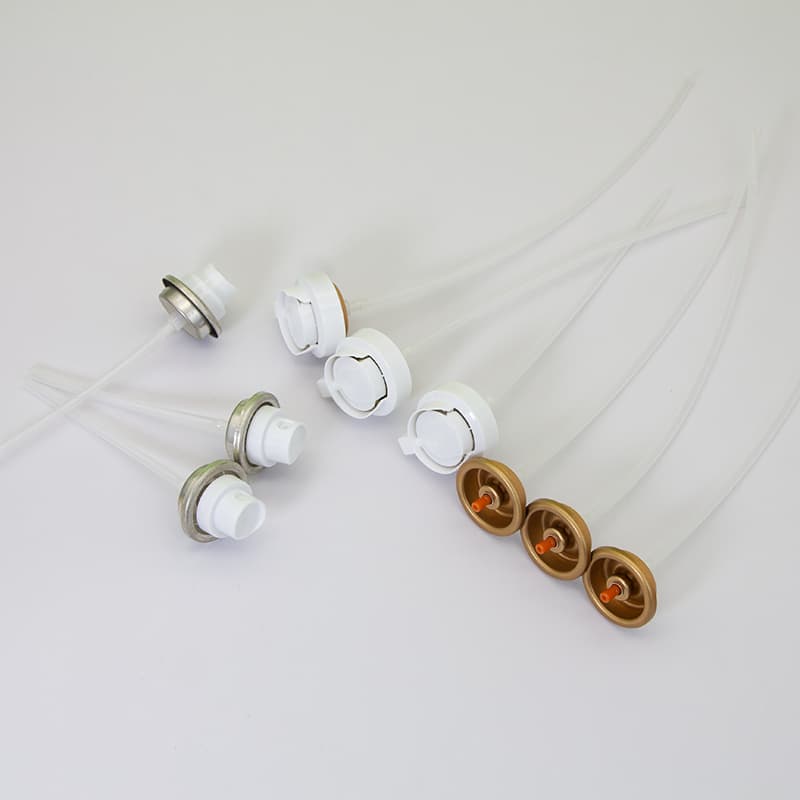

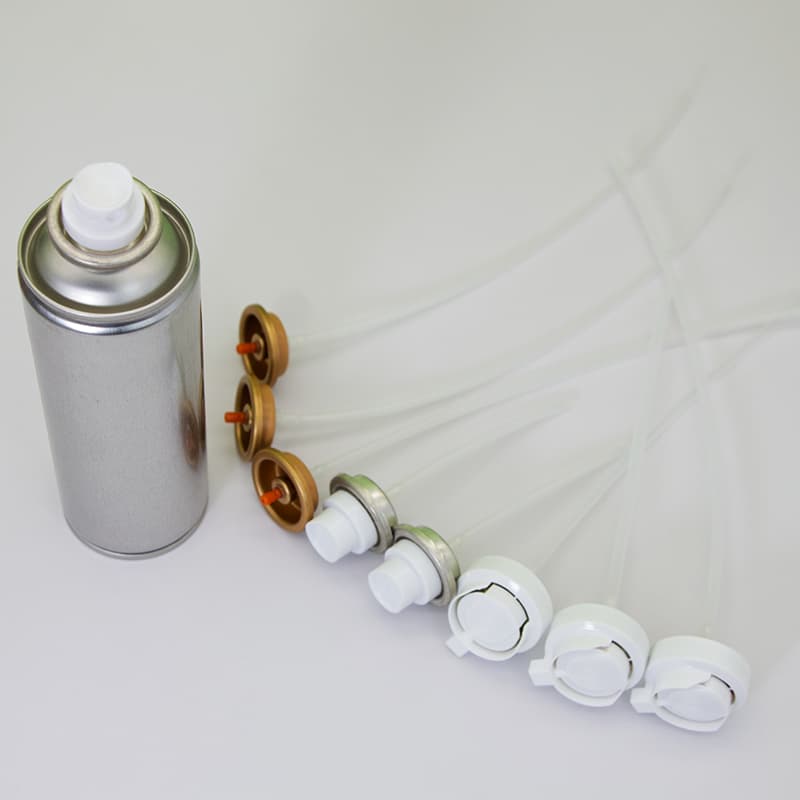

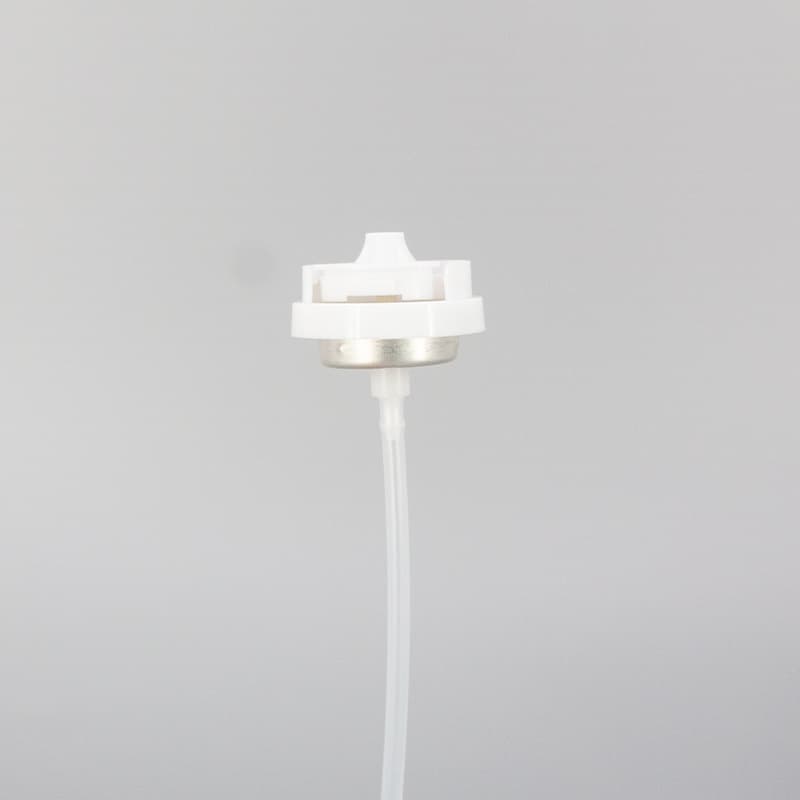

1 inch Aerosol valve and Actuator for spray paint

The aerosol valve mainly consists of the following parts: Mounting Cup, Outer asket,Inner Gasket（Buna/Neoprene/Butyl）, Valve Stem, Spring, shell, dip tube, actuator (actuator base, nozzle)

Material : Tinplate cup valve and aluminum cup valve.

Propellant: LPG series and DEM series

Valve type: Male valve and Female valve

Product details

+	A. Mounting Cup	Plain tinplate Both-side clear-lacquered tinplate Both-side gold-lacquered tinplate Both-side clear-lacquered aluminum Gold-lacquered aluminum
	B. Outer Gasket	Buna
	C. Inner Gasket	Buna / Neoprene / Butyl / Viton
	D. Value Stem	Material	Nylon
		Code	0rifice
		1-A1	1 X 0.46mm
		1-A2	2 X 0.51mm
		1-A3	3 X 1.27mm
		1-A4	4 X 0.61mm
		1-A5	1 X 0.33mm
		1-A6	1 X 0.51mm
		1-A7	1 X 0.41mm
		1-A8	2 X 0.61mm
		1-A9	1 X 0.61mm
	E . Spring	Stainless steel
	F . Housing	Material	Nylon
		Code	RTP	VPH
		1-D0	2.0mm(0.078”)	0.64mm(0.025”)
		1-D1	Four-slot valve chamber
		1-D2	2.0mm(0.078”)	NO
		1-D3	2.0mm(0.078”)	0.33mm(0.013")
		1-D4	1.27mm(0.050”)	0.64mm(0.025”)
		1-D5	1.27mm(0.050”)	0.33mm(0.013”)
		1-D6	2.0mm(0.078”)	0.46mm(0.018”)
		1-D7	1.27mm(0.050”)	0.46mm(0.018”)
		1-D8	0.64mm(0.025”)	0.64mm(0.025”)
		1-D9	2.0mm(0.078”)	0.51mm(0.020”)
		1-Da	0.51mm(0.020”)	0.51mm(0.020”)
		1-Db	1.0mm(0.039”)	0.33mm(0.013")
		1-Dc	1.0mm(0.039”)	NO
		1-Dd	1.27mm(0.050”)	NO
		1-Df	1.27mm(0.050”)	0.51mm(0.020”)
		1-Dg	2.0mm(0.078”)	1.0mm(0.039”)
		1-Dh	0.64mm(0.025”)	0.46mm(0.018”)
		1-Di	2.0mm(0.078”)	0.76mm(0.030”)
		1-Dj	1.27mm(0.050”)	0.76mm(0.030”)
		1-Dk	0.64mm(0.025”)	1.0mm(0.039”)
	G. Diptube	Material	Polyethylene
