Name: Futen High Quality 65 MM Diameter Empty Aerosol Can for Rust Removers
Availability: InStock

Futen High Quality 65 MM Diameter Empty Aerosol Can for Rust Removers

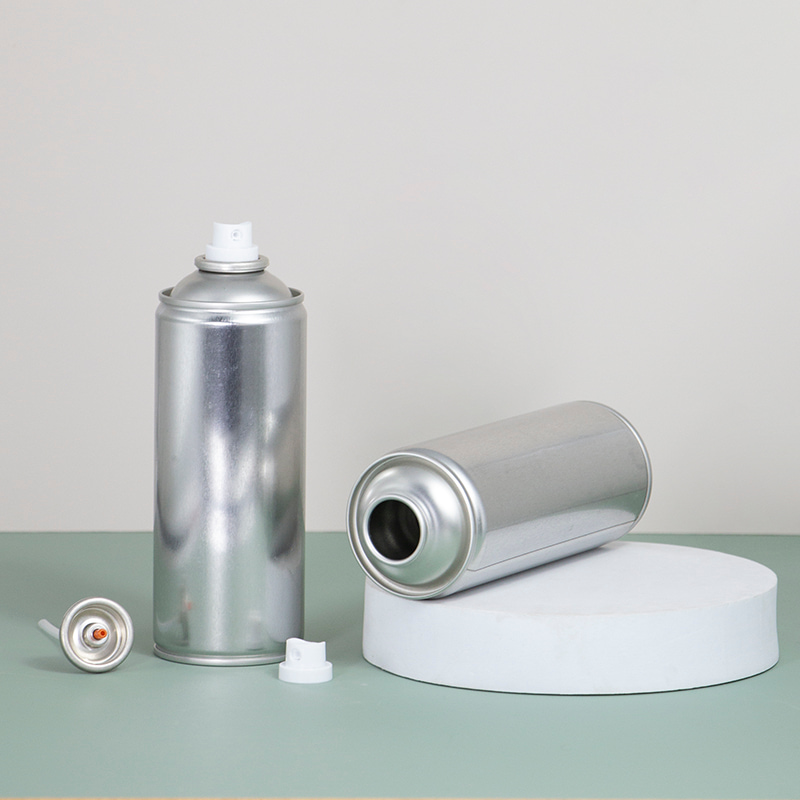

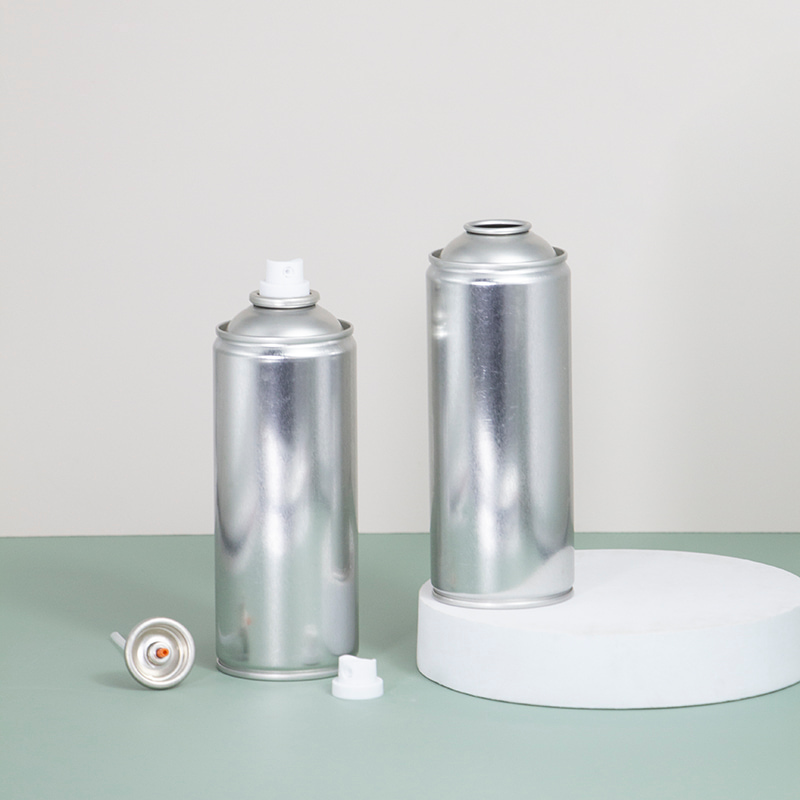

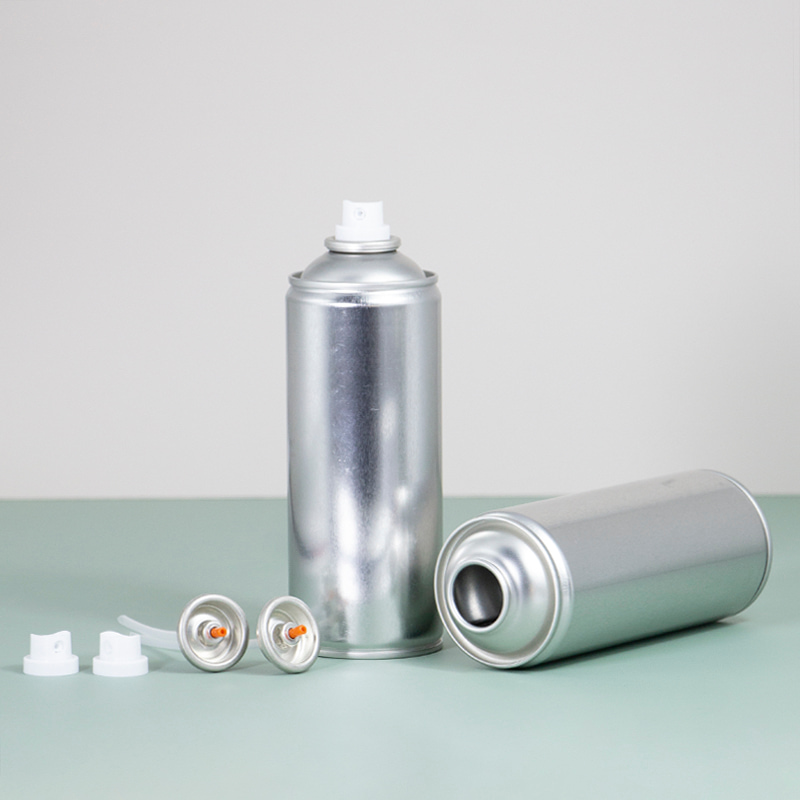

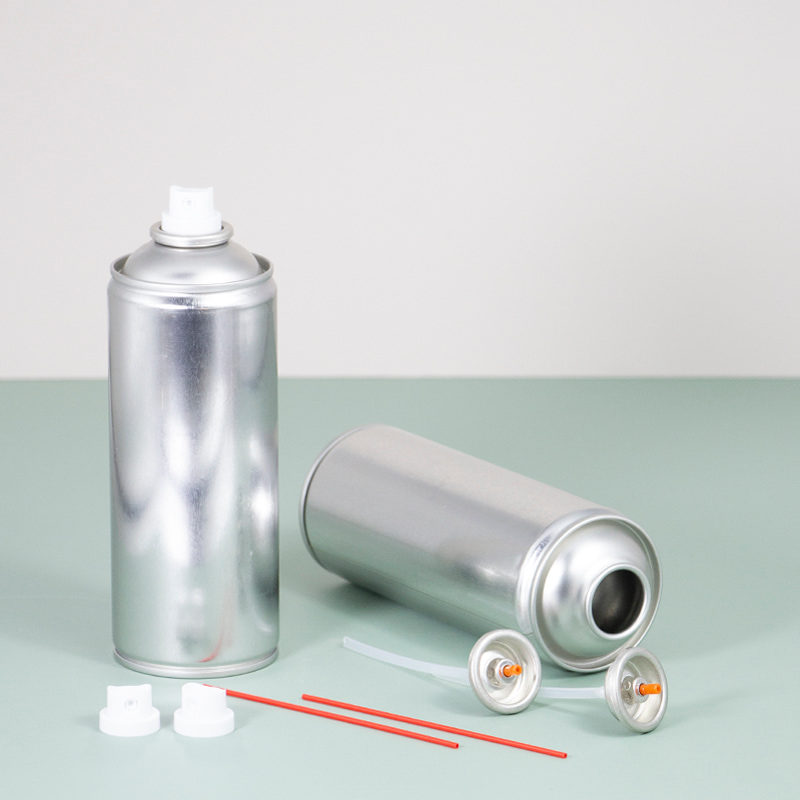

A high performance, chemically inert aerosol container designed for packaging aggressive formulations like rust dissolvers, penetrants, and industrial cleaners.

Item No :
Empty aerosol tin can
Order(MOQ) :
7500
Payment :
30% deposit, 70% balance before loading the container.
Product Origin :
Guangzhou China
Color :
CMYK printing
Shipping Port :
Guangzhou/Shenzhen
Lead Time :
20-25 days

Inquire Now

Product Details

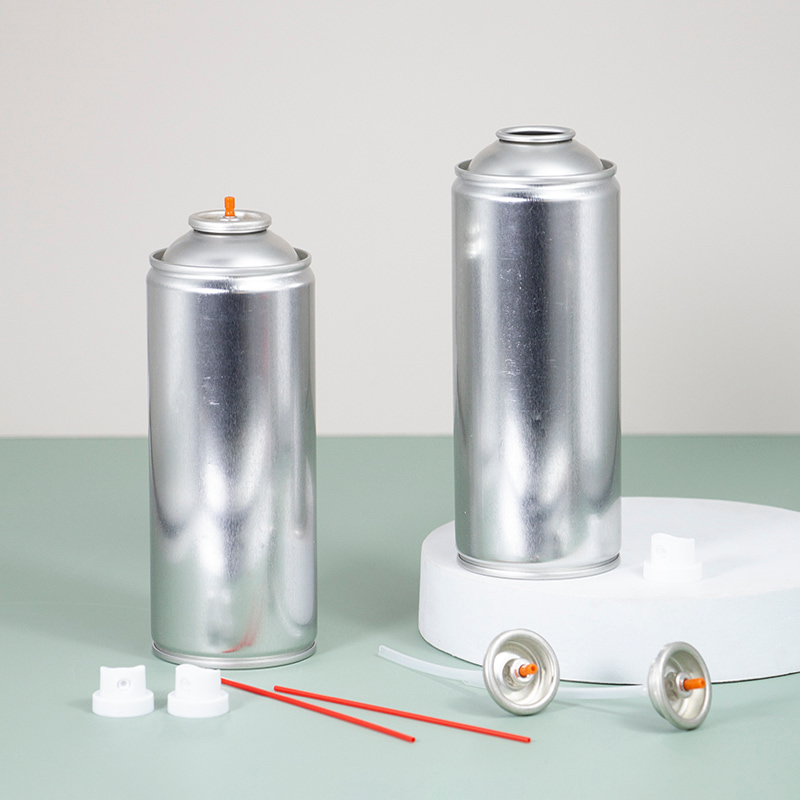

Discover high-quality empty aerosol tin cans engineered specifically for spray paint applications. The 65×158mm (diameter × height) size is widely recognized as the industry standard, ensuring broad compatibility and consumer familiarity.
High quality CMYK printing, accept customized color(pantone color）
OEM and ODM service, print with your own design printing , if it is your new project, our designer would help you to make your own brand design

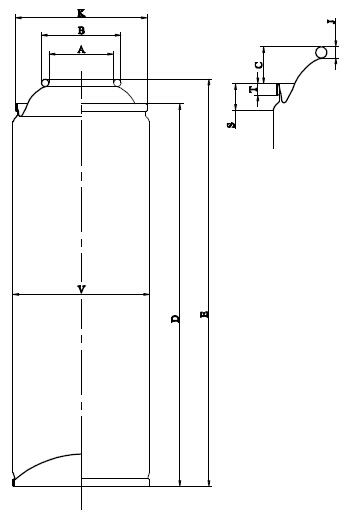

Specification Data For Different Diameter

NO.	Descreiption	Dia 45(mm)	Dia 52 (mm)	Dia 57 (mm)	Dia 65 (mm)
A	I/S CUP OPENING	25.4 ± 0.1	25.4 ± 0.1	25.4 ± 0.1	25.4 ± 0.1
B	O/S CUP OPENING	31.2 ± 0.2	31.2 ± 0.2	31.2 ± 0.2	31.20 ± 0.2
C	TOP OF CURL TO THE TOP OF THE TOP DOUBLE SEAM	5.2 ± 0.25	8.5±0.25	9.3 ± 0.25	13.2 ± 0.25
J	CONTACT HEIGHT	4 ± 0.15	4 ± 0.15	4 ± 0.15	4 ± 0.15
K	TOP DOUBLE SEAM OUTSIDE DIAMETER	43.8 ± 0.15	50.9+0.1 /-0.15	55.8 ± 0.15	63.25 ± 0.15
S	VERTICAL DISTANCE, TANGENT TO THE OUTSIDE DIAMETER OF THE DOME DOUBLE SEAM – TOP OF THE DOME DOUBLE TO THE NECKED-IN AREA OF THE CAN SIDEWALL	6.7± 0.2	6.7±0.2	6.7 ± 0.2	6.9 ± 0.2
T	WIDTH OR HEIGHT OF TOP DOUBLE SEAM	3± 0.2	3.1±0.2	3 ± 0.2	3.2 ± 0.2
V	BODY OUTSIDE DIAMETER	45.2 ± 0.2	52.5 ± 0.2	57 ± 0.2	65.5 ± 0.2
D	TOP OF THE TOP DOUBLE SEAM TO THE BOTTOM OF THE BOTTOM DOULBE SEAM	D±0.5	D±0.5	D±0.5	D ± 0.5
E	OVERALL HEIGHT	(D+5.5)±1.0	(D+8.8)±1.0	(D+9.6)±1.0	(D+13.5) ±1.0
