Name: Futen Tin Can Manufacturer Empty 227g Gas Butane Refill Cartridge Empty Cans with Nozzle Valve
Availability: InStock

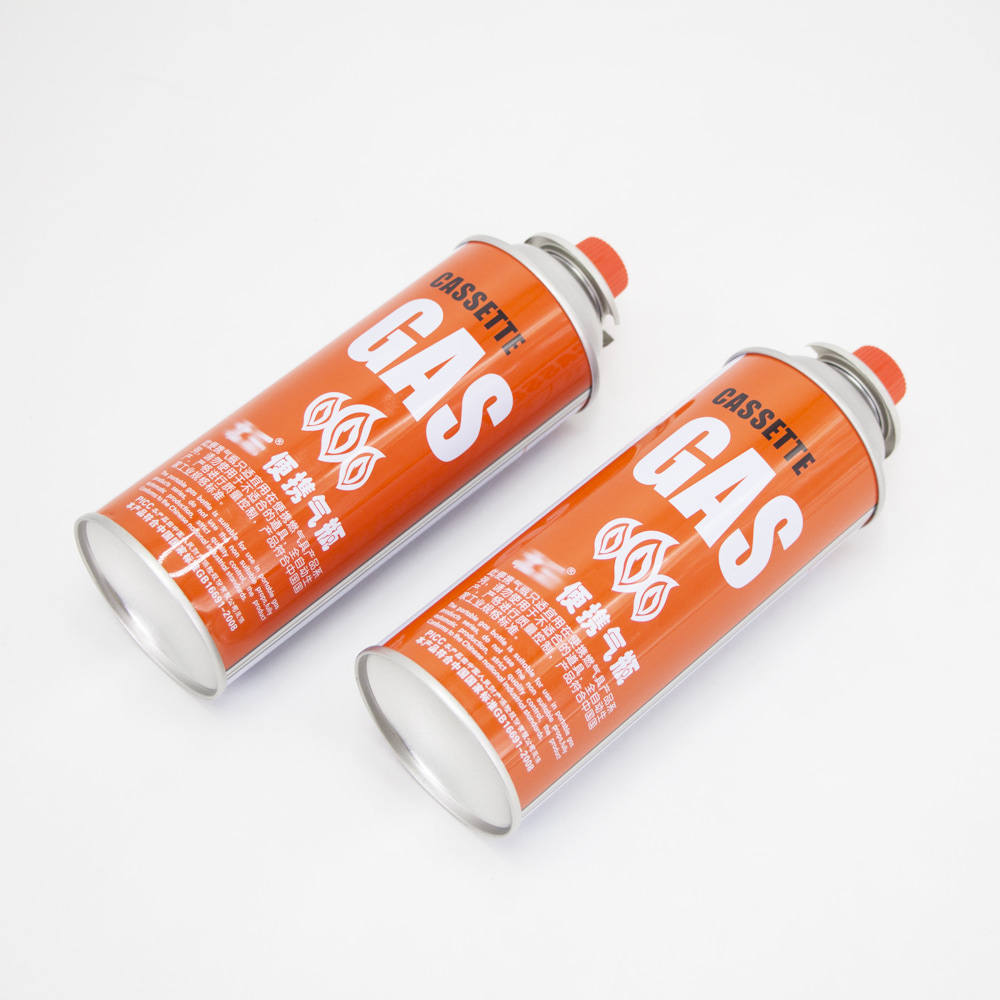

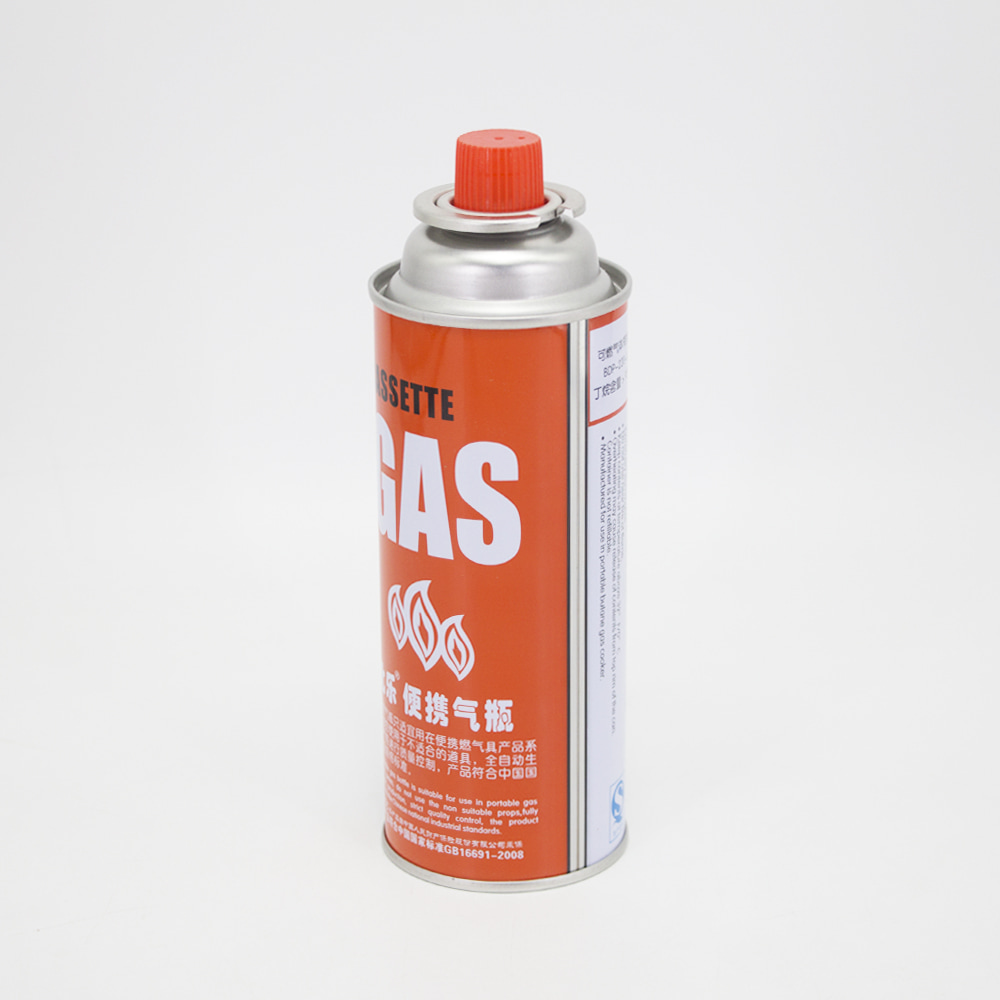

Futen Tin Can Manufacturer Empty 227g Gas Butane Refill Cartridge Empty Cans with Nozzle Valve

Good sealing, anti-corrosion,100 % test by automatic seal test machines

Item No :
227g Gas butane refill Cartridge with Nozzle Valve
Order(MOQ) :
10000
Payment :
30% deposit, 70% balance before loading the container.
Product Origin :
Guangzhou China
Color :
clear varnish/white coated/CMYK 4 color
Shipping Port :
Guangzhou/Shenzhen
Lead Time :
20-25 days

Inquire Now

Product Details

Materail: Grade Tinplate

Type: Straight-wall empty aerosol can

Size: Diameter 65mm, Shoulder height 158mm

Logo: OEM Service

Color: Customized CMYK 4 color and Pantone color printing

Finishing: silver, white coated and CMYK printing finish (custom color is acceptable)

Tinplate Thickness: body thickness 0.19/0.20mm, top and bottom thickness 0.32/0.35/0.40mm

Product Description:

The butane gas cans are crafted with premium-grade materials, typically made from tinplate material. This ensures strength, durability, and long-lasting performance.

Specification Data For Different Diameter

NO.	Descreiption	Dia 45(mm)	Dia 52 (mm)	Dia 57 (mm)	Dia 65 (mm)
A	I/S CUP OPENING	25.4 ± 0.1	25.4 ± 0.1	25.4 ± 0.1	25.4 ± 0.1
B	O/S CUP OPENING	31.2 ± 0.2	31.2 ± 0.2	31.2 ± 0.2	31.20 ± 0.2
C	TOP OF CURL TO THE TOP OF THE TOP DOUBLE SEAM	5.2 ± 0.25	8.5±0.25	9.3 ± 0.25	13.2 ± 0.25
J	CONTACT HEIGHT	4 ± 0.15	4 ± 0.15	4 ± 0.15	4 ± 0.15
K	TOP DOUBLE SEAM OUTSIDE DIAMETER	43.8 ± 0.15	50.9+0.1 /-0.15	55.8 ± 0.15	63.25 ± 0.15
S	VERTICAL DISTANCE, TANGENT TO THE OUTSIDE DIAMETER OF THE DOME DOUBLE SEAM – TOP OF THE DOME DOUBLE TO THE NECKED-IN AREA OF THE CAN SIDEWALL	6.7± 0.2	6.7±0.2	6.7 ± 0.2	6.9 ± 0.2
T	WIDTH OR HEIGHT OF TOP DOUBLE SEAM	3± 0.2	3.1±0.2	3 ± 0.2	3.2 ± 0.2
V	BODY OUTSIDE DIAMETER	45.2 ± 0.2	52.5 ± 0.2	57 ± 0.2	65.5 ± 0.2
D	TOP OF THE TOP DOUBLE SEAM TO THE BOTTOM OF THE BOTTOM DOULBE SEAM	D±0.5	D±0.5	D±0.5	D ± 0.5
E	OVERALL HEIGHT	(D+5.5)±1.0	(D+8.8)±1.0	(D+9.6)±1.0	(D+13.5) ±1.0

Production Process

Step 1、Tinplate Printing -- Color printing according to customer's design (CMYK colors)

Step 2、Tinplate Cutting -- Cut the tinplate to suitable sizes for diameters 45mm, 52mm, 57mm, and 65mm cans.

Step 3、Aerosol Can Making -- 8 production lines making tin cans for security delivery time.

Step 4、Leaking Test -- Air inspection machine and infrared ray auto-inspection machines for quality products.

Step 5、Auot Packing System -- Packing with pallets or cartons.

Step 6、The Stock -- Aerosol cans are packaged and stored in the warehouse after production.

Step 7、Loading -- Loading and delivery according to customer requirements.

Precision Spray Cap – Finer Mist, Less Waste

0.2 mm micro-orifice delivers ultra-fine mist with zero drips.

360° spray angle, works upside down without sputter.

Food-grade PP, solvent-resistant and clog-free.

Fits standard 20/410 thread, snap-on in one second.

Why Choose Us
