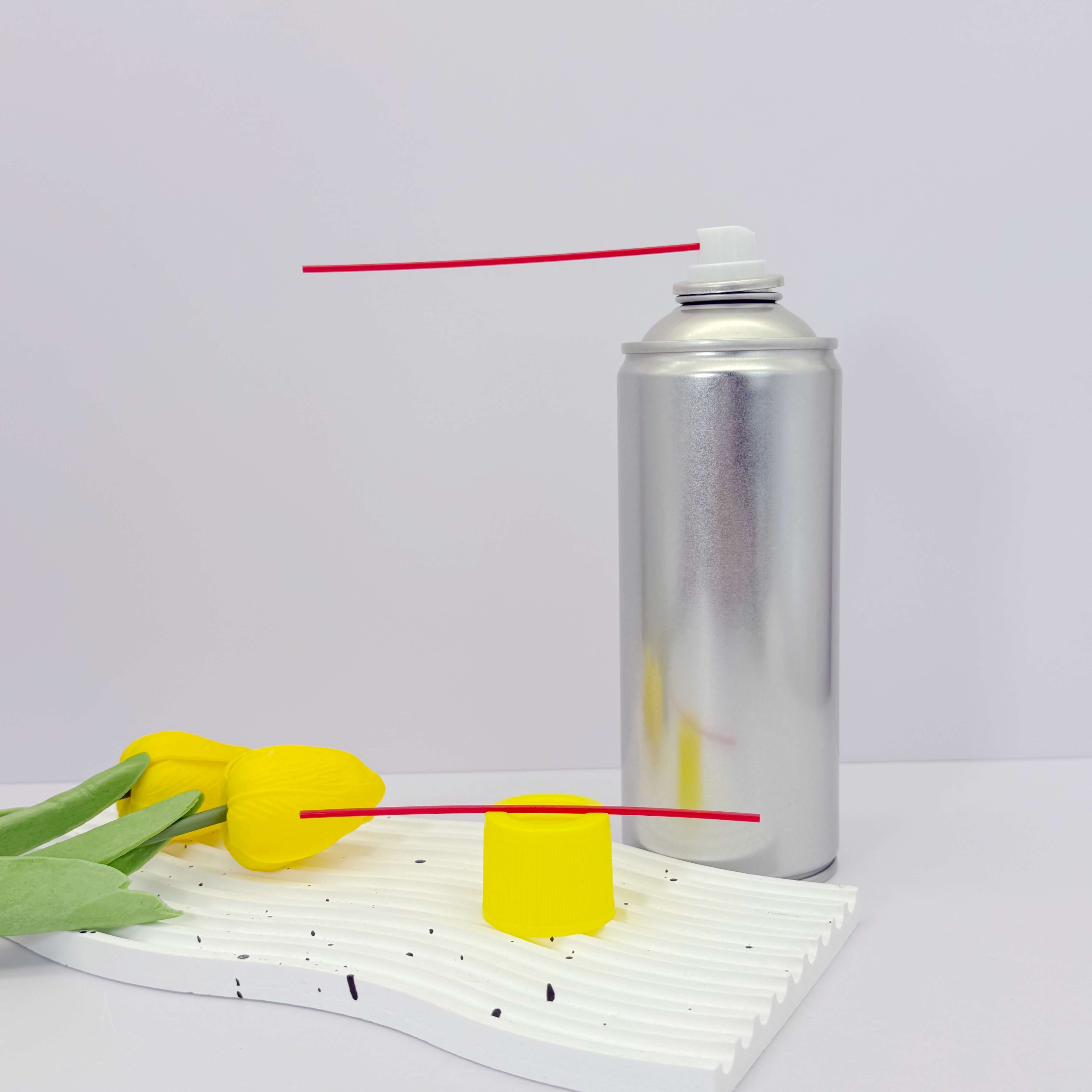

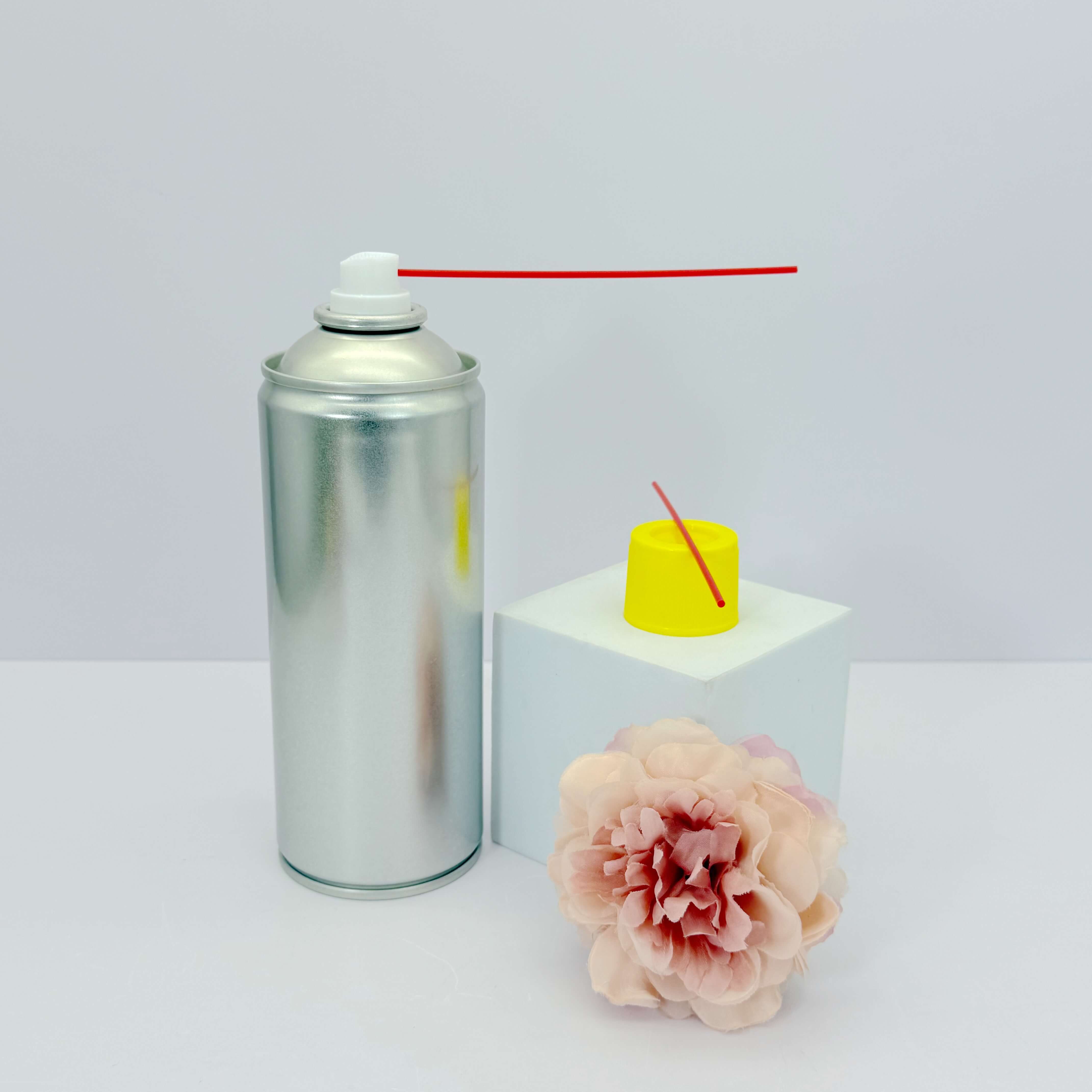

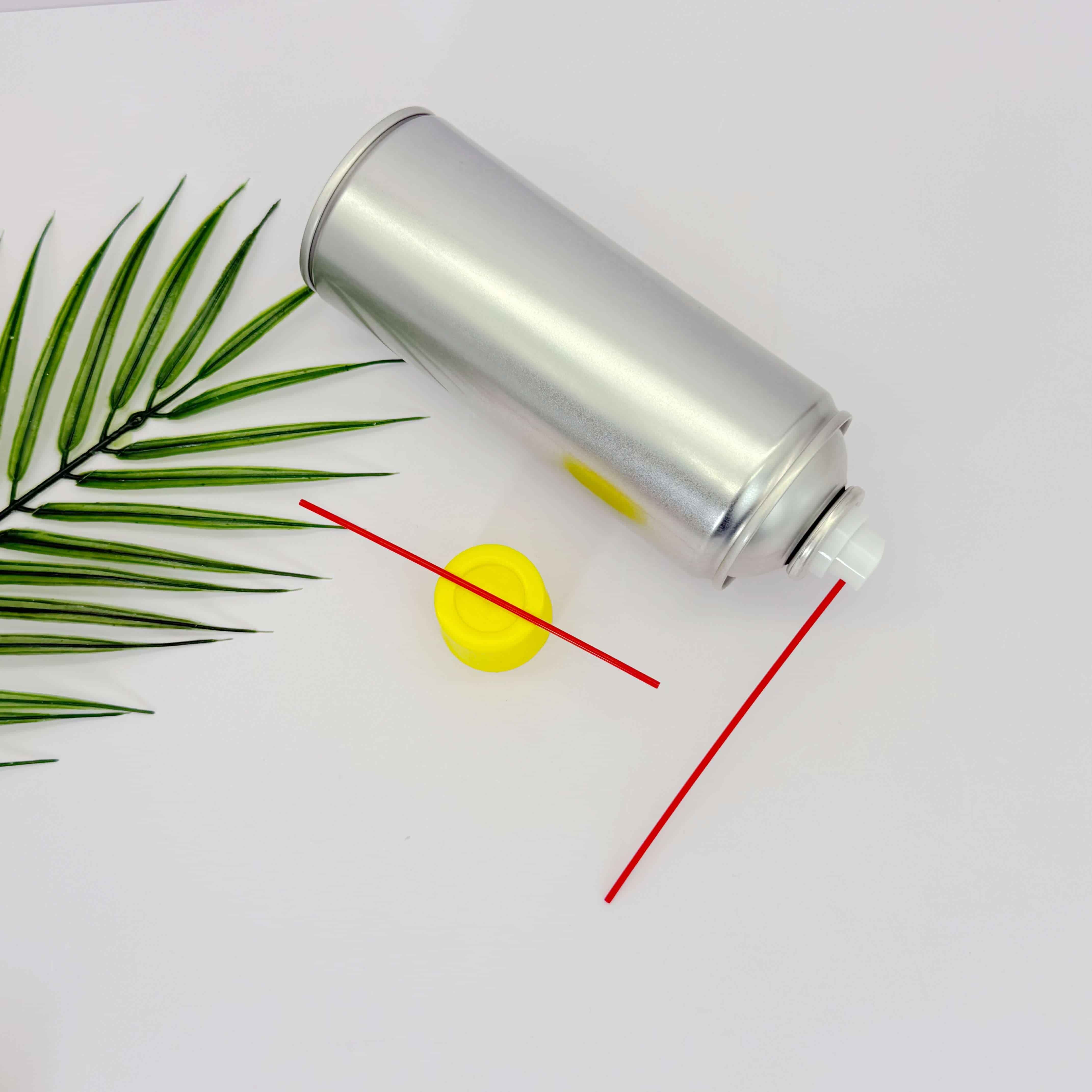

Name: Tinplate Can Diameter 65mm Necked-In Aerosol CAN for Automotive Beauty Products
Availability: InStock

Tinplate Can Diameter 65mm Necked-In Aerosol CAN for Automotive Beauty Products

Our aerosol cans use recyclable materials and non-toxic production for automotive beauty products. Designed for precise dispensing and leak-proof performance.

Item No :
65mm Empty aerosol tin can
Order(MOQ) :
7500
Payment :
TT, LC, Paypal, Alipay, Wechat, Credit card, Western Union.
Product Origin :
Guangzhou China
Color :
CMYK printing
Shipping Port :
Guangzhou/Shenzhen
Lead Time :
20-25 days

Inquire Now

Product Details

The empty aerosol can for Chemical spray, customize your metal packaging size and design according to the purpose of the product. Accept custom color with CMYK printing or pantone color printing

Specification Data For Different Diameter

NO.	Descreiption	Dia 45(mm)	Dia 52 (mm)	Dia 57 (mm)	Dia 65 (mm)
A	I/S CUP OPENING	25.4 ± 0.1	25.4 ± 0.1	25.4 ± 0.1	25.4 ± 0.1
B	O/S CUP OPENING	31.2 ± 0.2	31.2 ± 0.2	31.2 ± 0.2	31.20 ± 0.2
C	TOP OF CURL TO THE TOP OF THE TOP DOUBLE SEAM	5.2 ± 0.25	8.5±0.25	9.3 ± 0.25	13.2 ± 0.25
J	CONTACT HEIGHT	4 ± 0.15	4 ± 0.15	4 ± 0.15	4 ± 0.15
K	TOP DOUBLE SEAM OUTSIDE DIAMETER	43.8 ± 0.15	50.9+0.1 /-0.15	55.8 ± 0.15	63.25 ± 0.15
S	VERTICAL DISTANCE, TANGENT TO THE OUTSIDE DIAMETER OF THE DOME DOUBLE SEAM – TOP OF THE DOME DOUBLE TO THE NECKED-IN AREA OF THE CAN SIDEWALL	6.7± 0.2	6.7±0.2	6.7 ± 0.2	6.9 ± 0.2
T	WIDTH OR HEIGHT OF TOP DOUBLE SEAM	3± 0.2	3.1±0.2	3 ± 0.2	3.2 ± 0.2
V	BODY OUTSIDE DIAMETER	45.2 ± 0.2	52.5 ± 0.2	57 ± 0.2	65.5 ± 0.2
D	TOP OF THE TOP DOUBLE SEAM TO THE BOTTOM OF THE BOTTOM DOULBE SEAM	D±0.5	D±0.5	D±0.5	D ± 0.5
E	OVERALL HEIGHT	(D+5.5)±1.0	(D+8.8)±1.0	(D+9.6)±1.0	(D+13.5) ±1.0
